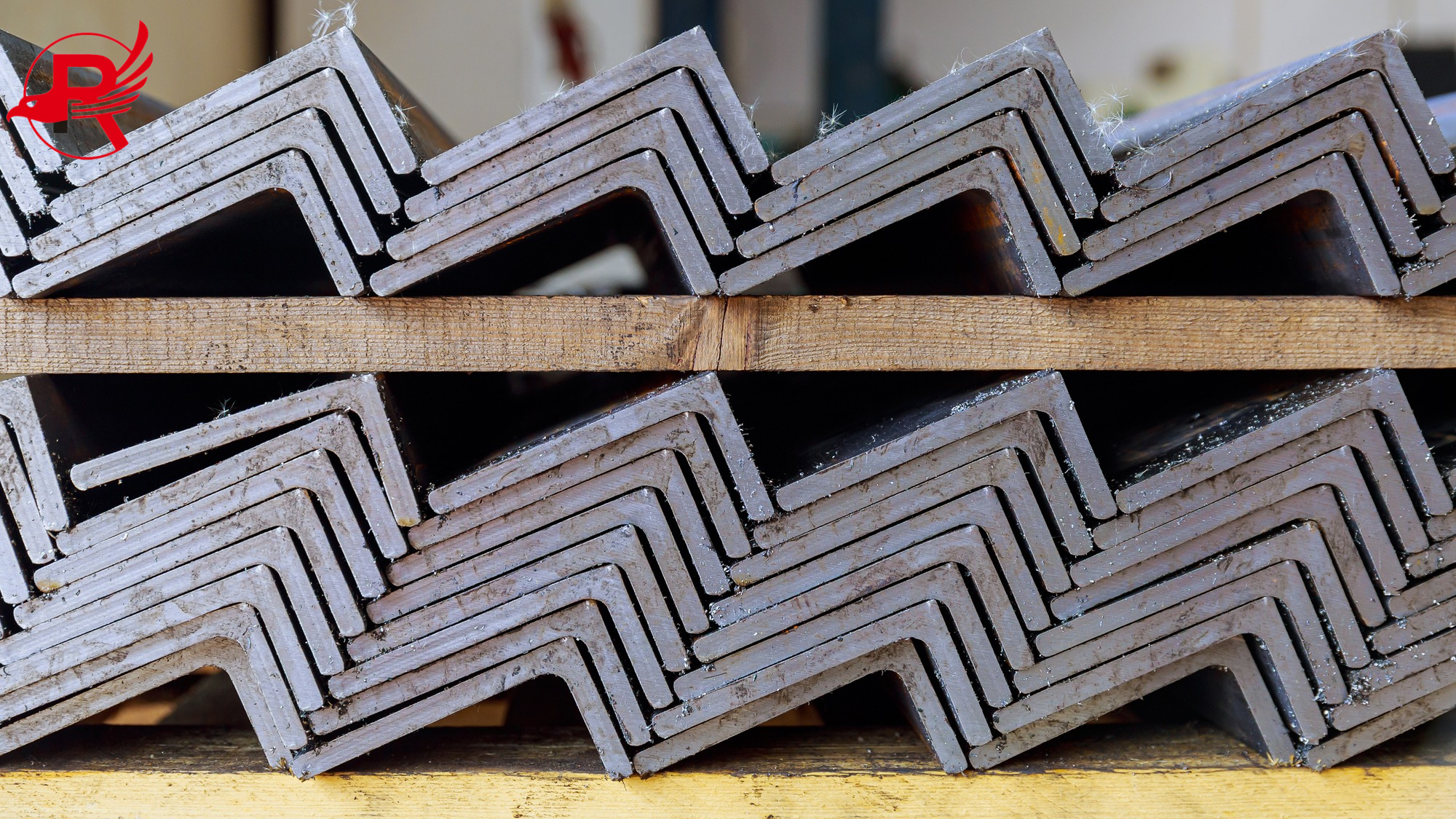

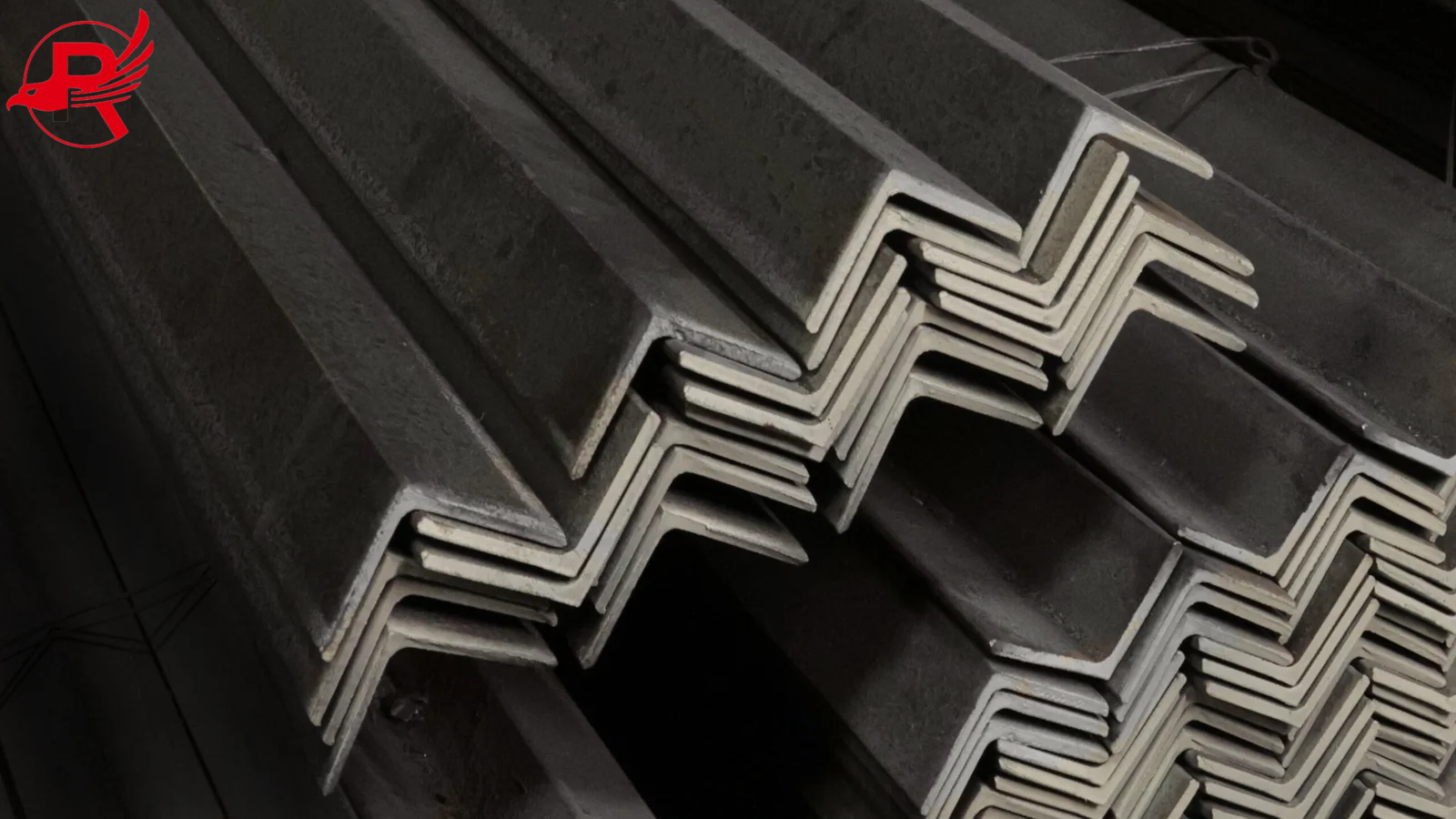

Hot Rolled ASTM A572 Angle Steel Bar Equal & Unequal Leg Galvanized Carbon Steel Angle
Product Detail
| Item | Equal Leg Angle | Unequal Leg Angle |
|---|---|---|
| Thickness | 5–25 mm | 5–25 mm |
| Width / Leg Size | 50–200 mm | 50–250 mm |
| Length | 6m / 12m / Custom | 6m / 12m / Custom |
| Surface | Hot Rolled / Galvanized | Hot Rolled / Galvanized |
| Weight | As per standard | As per standard |
| Ready Stock | Available for common sizes | Available for common sizes |
| Exported To | Southeast Asia, Middle East, South America, Africa | Southeast Asia, Middle East, South America, Africa |
| Delivery Time | 7–15 days (stock) / 20–30 days (production) | 7–15 days (stock) / 20–30 days (production) |
ASTM A572 Angle Steel Bar Chemical Composition
| Item | Grade | Carbon, max, % | Manganese, max, % | Silicon, max, % | Phosphorus, max, % | Sulfur, max, % |
|---|---|---|---|---|---|---|
| A572 Steel Angle | 42 | 0.21 | 1.35 | 0.40 | 0.04 | 0.05 |
| 50 | 0.23 | 1.35 | 0.40 | 0.04 | 0.05 | |
| 55 | 0.25 | 1.35 | 0.40 | 0.04 | 0.05 |
ASTM A572 Angle Steel Bar Mechanical Properties
| Item | Grade | Yield Point, min, ksi [MPa] | Tensile Strength, min, ksi [MPa] |
|---|---|---|---|
| A572 Steel Angle | 42 | 42 [290] | 60 [415] |
| 50 | 50 [345] | 65 [450] | |
| 55 | 55 [380] | 70 [485] |
ASTM A572 Angle Steel Bar Size
A572 equal angle steel specification
A572 unequal angle steel specification
A572 equal angle steel specification
| Item | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) | Item | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) |
| EA36001 | 20 | 20 | 3 | 0.889 | EA36045 | 80 | 80 | 7 | 8.525 |
| EA36002 | 20 | 20 | 4 | 1.145 | EA36046 | 80 | 80 | 8 | 9.658 |
| EA36003 | 25 | 25 | 3 | 1.124 | EA36047 | 80 | 80 | 10 | 11.874 |
| EA36004 | 25 | 25 | 4 | 1.459 | EA36048 | 90 | 90 | 6 | 8.35 |
| EA36005 | 30 | 30 | 3 | 1.373 | EA36049 | 90 | 90 | 7 | 9.656 |
| EA36006 | 30 | 30 | 4 | 1.786 | EA36050 | 90 | 90 | 8 | 10.946 |
| EA36007 | 35 | 35 | 3 | 1.578 | EA36051 | 90 | 90 | 10 | 13.476 |
| EA36008 | 35 | 35 | 4 | 2.072 | EA36052 | 90 | 90 | 12 | 15.94 |
| EA36009 | 35 | 35 | 5 | 2.551 | EA36053 | 100 | 100 | 6 | 9.366 |
| EA36010 | 40 | 40 | 3 | 1.852 | EA36054 | 100 | 100 | 7 | 10.83 |
| EA36011 | 40 | 40 | 4 | 2.422 | EA36055 | 100 | 100 | 8 | 10.276 |
| EA36012 | 40 | 40 | 5 | 1.976 | EA36056 | 100 | 100 | 10 | 15.12 |
| EA36013 | 44 | 44 | 3 | 2.002 | EA36057 | 100 | 100 | 12 | 17.898 |
| EA36014 | 44 | 44 | 4 | 2.638 | EA36058 | 100 | 100 | 14 | 20.611 |
| EA36015 | 38 | 38 | 3 | 1.719 | EA36059 | 100 | 100 | 16 | 23.257 |
| EA36016 | 38 | 38 | 4 | 2.261 | EA36060 | 110 | 110 | 7 | 11.928 |
| EA36017 | 48 | 48 | 3 | 2.19 | EA36061 | 110 | 110 | 8 | 13.532 |
| EA36018 | 48 | 48 | 4 | 2.889 | EA36062 | 110 | 110 | 10 | 16.69 |
| EA36019 | 48 | 48 | 5 | 3.572 | EA36063 | 110 | 110 | 12 | 19.782 |
| EA36020 | 50 | 50 | 3 | 2.332 | EA36064 | 110 | 110 | 14 | 22.809 |
| EA36021 | 50 | 50 | 4 | 3.059 | EA36065 | 125 | 125 | 8 | 15.504 |
| EA36022 | 50 | 50 | 5 | 3.77 | EA36066 | 125 | 125 | 10 | 19.133 |
| EA36023 | 50 | 50 | 6 | 4.465 | EA36067 | 125 | 125 | 12 | 22.692 |
| EA36024 | 56 | 56 | 3 | 2.624 | EA36068 | 125 | 125 | 14 | 26.193 |
| EA36025 | 56 | 56 | 4 | 3.446 | EA36069 | 140 | 140 | 10 | 21.488 |
| EA36026 | 56 | 56 | 5 | 4.251 | EA36070 | 140 | 140 | 12 | 25.522 |
| EA36027 | 56 | 56 | 6 | 6.568 | EA36071 | 140 | 140 | 14 | 29.49 |
| EA36028 | 63 | 63 | 4 | 3.907 | EA36072 | 140 | 140 | 16 | 33.393 |
| EA36029 | 63 | 63 | 5 | 4.822 | EA36073 | 160 | 160 | 10 | 24.724 |
| EA36030 | 63 | 63 | 6 | 5.721 | EA36074 | 160 | 160 | 12 | 29.391 |
| EA36031 | 63 | 63 | 8 | 7.469 | EA36075 | 160 | 160 | 14 | 33.987 |
| EA36032 | 63 | 63 | 10 | 9.151 | EA36076 | 160 | 160 | 16 | 38.518 |
| EA36033 | 70 | 70 | 4 | 4.372 | EA36077 | 180 | 180 | 12 | 33.159 |
| EA36034 | 70 | 70 | 5 | 5.397 | EA36078 | 180 | 180 | 14 | 35.383 |
| EA36035 | 70 | 70 | 6 | 6.406 | EA36079 | 180 | 180 | 16 | 43.452 |
| EA36036 | 70 | 70 | 7 | 7.398 | EA36080 | 180 | 180 | 18 | 48.634 |
| EA36037 | 70 | 70 | 8 | 8.373 | EA36081 | 200 | 200 | 14 | 42.894 |
| EA36038 | 75 | 75 | 5 | 5.818 | EA36082 | 200 | 200 | 16 | 48.56 |
| EA36039 | 75 | 75 | 6 | 6.905 | EA36083 | 200 | 200 | 18 | 54.501 |
| EA36040 | 75 | 75 | 7 | 7.976 | EA36084 | 200 | 200 | 20 | 60.056 |
| EA36041 | 75 | 75 | 8 | 9.03 | EA36085 | 200 | 200 | 22 | 71.168 |
| EA36042 | 75 | 75 | 10 | 11.089 | Length = 6 - 12 meters SS400 or Q235 | ||||
| EA36043 | 80 | 80 | 5 | 6.211 | |||||
| EA36044 | 80 | 80 | 6 | 7.376 | |||||
A572 unequal angle steel specification
| Item No. | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) | Item No. | Leg 1 (mm) | Leg 2 (mm) | Thickness (mm) | Weight (kg/m) |
| UEA36001 | 30 | 20 | 3 | 1.14 | UEA36045 | 100 | 50 | 6 | 6.98 |
| UEA36002 | 30 | 20 | 4 | 1.49 | UEA36046 | 100 | 50 | 8 | 9.16 |
| UEA36003 | 40 | 20 | 3 | 1.38 | UEA36047 | 100 | 50 | 10 | 11.3 |
| UEA36004 | 40 | 20 | 3 | 1.8 | UEA36048 | 100 | 65 | 7 | 8.96 |
| UEA36005 | 40 | 25 | 4 | 1.97 | UEA36049 | 100 | 65 | 8 | 10.2 |
| UEA36006 | 45 | 30 | 4 | 2.3 | UEA36050 | 100 | 65 | 9 | 11.3 |
| UEA36007 | 45 | 30 | 5 | 2.82 | UEA36051 | 100 | 65 | 10 | 12.5 |
| UEA36008 | 50 | 30 | 5 | 3.02 | UEA36052 | 100 | 75 | 7 | 9.52 |
| UEA36009 | 50 | 30 | 6 | 3.58 | UEA36053 | 100 | 75 | 8 | 10.8 |
| UEA36010 | 50 | 40 | 4 | 2.77 | UEA36054 | 100 | 75 | 9 | 12.1 |
| UEA36011 | 50 | 40 | 5 | 3.42 | UEA36055 | 100 | 75 | 10 | 13.3 |
| UEA36012 | 50 | 40 | 6 | 4.03 | UEA36056 | 100 | 75 | 11 | 14.6 |
| UEA36013 | 60 | 30 | 5 | 3.43 | UEA36057 | 100 | 75 | 12 | 15.8 |
| UEA36014 | 60 | 30 | 6 | 4.06 | UEA36058 | 120 | 80 | 8 | 12.4 |
| UEA36015 | 60 | 30 | 7 | 4.68 | UEA36059 | 120 | 80 | 10 | 15.3 |
| UEA36016 | 60 | 40 | 5 | 3.83 | UEA36060 | 120 | 80 | 12 | 18.2 |
| UEA36017 | 60 | 40 | 6 | 4.54 | UEA36061 | 130 | 65 | 8 | 12.1 |
| UEA36018 | 60 | 40 | 7 | 5.24 | UEA36062 | 130 | 65 | 10 | 14.9 |
| UEA36019 | 65 | 50 | 5 | 4.43 | UEA36063 | 130 | 65 | 12 | 17.7 |
| UEA36020 | 65 | 50 | 6 | 5.26 | UEA36064 | 130 | 75 | 8 | 12.7 |
| UEA36021 | 65 | 50 | 7 | 6.08 | UEA36065 | 130 | 75 | 10 | 15.7 |
| UEA36022 | 65 | 50 | 8 | 6.88 | UEA36066 | 130 | 75 | 12 | 18.6 |
| UEA36023 | 75 | 50 | 5 | 4.83 | UEA36067 | 130 | 90 | 10 | 17 |
| UEA36024 | 75 | 50 | 6 | 5.75 | UEA36068 | 130 | 90 | 12 | 20.1 |
| UEA36025 | 75 | 50 | 7 | 6.65 | UEA36069 | 150 | 75 | 9 | 15.7 |
| UEA36026 | 75 | 50 | 8 | 7.53 | UEA36070 | 150 | 75 | 10 | 17.4 |
| UEA36027 | 75 | 50 | 9 | 8.4 | UEA36071 | 150 | 75 | 11 | 18.9 |
| UEA36028 | 75 | 55 | 5 | 5.04 | UEA36072 | 150 | 75 | 12 | 20.6 |
| UEA36029 | 75 | 55 | 7 | 6.93 | UEA36073 | 150 | 90 | 10 | 18.6 |
| UEA36030 | 75 | 65 | 6 | 6.49 | UEA36074 | 150 | 90 | 12 | 22 |
| UEA36031 | 75 | 65 | 8 | 8.48 | UEA36075 | 150 | 90 | 15 | 27.1 |
| UEA36032 | 75 | 65 | 10 | 10.5 | UEA36076 | 150 | 100 | 10 | 19.3 |
| UEA36033 | 80 | 40 | 6 | 5.51 | UEA36077 | 150 | 100 | 12 | 23 |
| UEA36034 | 80 | 40 | 8 | 7.21 | UEA36078 | 150 | 100 | 14 | 26.6 |
| UEA36035 | 80 | 60 | 6 | 6.49 | UEA36079 | 160 | 80 | 10 | 18.5 |
| UEA36036 | 80 | 60 | 7 | 7.5 | UEA36080 | 160 | 80 | 12 | 22 |
| UEA36037 | 80 | 60 | 8 | 8.48 | UEA36081 | 160 | 80 | 14 | 25.4 |
| UEA36038 | 80 | 65 | 6 | 6.73 | UEA36082 | 200 | 100 | 10 | 23.4 |
| UEA36039 | 80 | 65 | 8 | 8.82 | UEA36083 | 200 | 100 | 12 | 27.8 |
| UEA36040 | 80 | 65 | 10 | 10.9 | UEA36084 | 200 | 100 | 15 | 34.4 |
| UEA36041 | 90 | 65 | 6 | 7.22 | UEA36085 | 250 | 90 | 10 | 26.6 |
| UEA36042 | 90 | 65 | 7 | 8.32 | Material: ASTM A36 Length = 6 - 12 meters | ||||
| UEA36043 | 90 | 65 | 8 | 9.44 | |||||
| UEA36044 | 90 | 65 | 10 | 11.7 | |||||
Click the Button on The Right
ASTM A572 Angle Steel Customized Content
| Category | Options / Description | MOQ |
|---|---|---|
| Dimension | Leg size 25–150 mm, thickness 3–16 mm, length 6–12 m (custom lengths available) | 20 tons |
| Processing | Cutting, drilling, slotting, bevels, mitre cuts, welding prep | 20 tons |
| Surface | Black, painted/epoxy, hot-dip galvanizing | 20 tons |
| Marking & Packaging | Custom labels; bundles with straps, padding, and moisture protection | 20 tons |
Main Application
Engineering & Construction — Employed in structural frames and bracing systems and numerous building applications.
Manufacturing and Fabrication – Perfect for frames, rails, brackets, and welded assemblies.
Civil works – Used extensively in bridges, transmission towers and general structural work.
Machinery & Equipment - Can be used in machine parts and machinery mounts.
Material Handling & Storage – Use for Shelving, Storage Racks and Loading Docks.
Shipbuilding & Marine – Used in doubler plates, keelson and deck plate reinforcement.
Why Choose China Royal Steel?
Factory Direct Pricing to Save Your Cost with Best Service
As the steel manufacturer, we didn't involve trading company in the process, that would most beneficial for your profit.
Reliable Quality You Can Count on
All the products are under the strict quality control and meet the ASTM/EN/JIS etc. standard, they are consistent applied in your projects.
Fast Response & Professional Support
Our knowledgeable sales staff will respond with prompt quotations, technical support and project solutions within 24hrs.
Custom Solutions to Your Unique Needs
Galvanized, special sizes or quantities just send us your requirements and we will customize produce to fit your needs.
Strong Supply & Fast Delivery
We have standard ready stock for regular sizes and fast production line for special sizes so that we can delivery your urgent order in time.
Experienced Export Record Proven Manufacturer Exporter From China.
Packaging & Shipping
Standard Export Packaging: Packaged with strong steel strap and covered with waterproof film to avoid damp and damage during transportation.
Custom Packaging Available: Special packing treatment like wooden pallets, plastic caps, rust preventive coatings can be supplied according to clients’ requirements.
Loading Options for Containers: Applicable for 20GP / 40GP / 40HQ containers or bulk vessel shipment according to quantity of orders.
Safe & Efficient Logistics: Professional loading to make full use of space and not easy to deformation or surface scratch.
Global Shipping Support: Southeast Asia, Middle East, South America and Africa etc full export document, experienced in doing shipment.
Fast Delivery Time: And the customized products usually need 20-30 working days.The stock items can be delivered out within 7-15 days.
US Market Delivery: ASTM angle steel in the Americas is bundled with steel straps, the ends are protected and rust prevention treatment is optional for shipping
FAQ
Q1: Can we customize sizes or lengths?
Yes, we provide custom lengths, thicknesses, and leg dimensions as per project requirements.
Q2: Is galvanization available for all sizes?
Yes, hot-dip galvanized coating is optional for both equal and unequal leg angles.
Q3: What standards do your steel angles comply with?
Primarily ASTM A572, also available in JIS and EN standards on request.
Q4: What is the delivery time?
Typical delivery is 7–15 days, depending on order quantity and specifications.
Q5: Do you provide export support?
Yes, we handle global shipping, documentation, and customs clearance for steel exports.
