Short Description:

IPE Steel Beam is a European standard hot rolled I beam widely used in structural construction and engineering projects.

Manufactured according to EN 10025 standards, it is available in grades such as S235, S275, and S355, offering excellent strength, stability, and weldability.

IPE beams are commonly applied in steel structures, warehouses, industrial buildings, bridges, and infrastructure projects. Customized sizes, cutting, and surface treatments are available to meet different project requirements.


  • Place of Origin:: China
  • Brand Name:: Royal Steel
  • Model Number:: RY-H2510
  • Dimensions: IPE/IPN 80-600
  • Length: Stock for 6 m & 12 m, Customized Length
  • Delivery Time: 10-25 working days
  • Payment Term: T/T,Western Union
  • Quality Certification: SGS/BV/ISO 9001
    • Send email to us WhatsApp

    Product Detail

    Product Tags

    Product Introduction

    Standard EN Brand Name Royal
    Grade S235JR,S355JR Application Building Construction
    Tolerance ±1% Shape I-type
    Processing Service Cutting, Decoiling, Punching, Bending, Welding Technique Hot Rollled
    Delivery Time 7 ~ 15 days Material S235JR/S355JR
    Alloy Or Not Non-Alloy Surface Galvanized Surface
    Invoicing By Actual Weight MOQ 20 Tons
    Place of Origin Tianjin, China PAYMENT TERM TT
    Check Latest Stock & Price

    Chemical Composition & Mechanical Properties

    Standard Grade C (Carbon) Mn (Manganese) P (Phosphorus) S (Sulfur) Yield Strength Tensile Strength
    EN S235 ≤ 0.17% ≤ 1.40% ≤ 0.035% ≤ 0.035% 235 MPa 360–510 MPa
    EN S275 ≤ 0.21% ≤ 1.50% ≤ 0.035% ≤ 0.035% 275 MPa 410–560 MPa

    IPE/IPN Size

    IPE dimension
    IPN dimension
    IPE dimension
    Item Weight (kg/m) Depth (mm) Width (mm) Web thickness (mm) Flange thickness (mm)
    IPE 80 6 80 46 3.8 5.2
    IPE 100 8.1 100 55 4.1 5.7
    IPE 120 10.4 120 64 4.4 6.3
    IPE 140 12.9 140 73 4.7 6.9
    IPE 160 15.8 160 82 5 7.4
    IPE 180 18.8 180 91 5.3 8
    IPE 200 22.4 200 100 5.6 8.5
    IPE 220 26.2 220 110 5.9 9.2
    IPE 240 30.7 240 120 6.2 9.8
    IPE 270 36.1 270 135 6.6 10.2
    IPE 300 42.2 300 150 7.1 10.7
    IPE 330 49.1 330 160 7.5 11.5
    IPE 360 57.1 360 170 8 12.7
    IPE 400 66.3 400 180 8.6 13.6
    IPE 450 79.1 450 190 9.4 14.6
    IPE 500 90.7 500 200 10.2 16
    IPE 550 106 550 210 11.2 17.2
    IPE 600 124.4 600 220 12 19
    IPN dimension
    Item Weight (kg/m) Depth (mm) Width (mm) Web thickness (mm) Flange thickness (mm)
    IPN 80 5.9 80 42 3.9 5.9
    IPN 100 8.3 100 50 4.5 6.8
    IPN 120 11.1 120 58 5.1 7.7
    IPN 140 14.3 140 66 5.7 8.6
    IPN 160 17.9 160 74 6.3 9.5
    IPN 180 21.9 180 82 6.9 10.4
    IPN 200 26.2 200 90 7.5 11.3
    IPN 220 31.1 220 98 8.1 12.2
    IPN 240 36.2 240 106 8.7 13.1
    IPN 260 41.9 260 113 9.4 14.1
    IPN280 47.9 280 119 10.1 15.2
    IPN 300 54.2 300 125 10.8 16.2
    IPN320 61 320 131 11.5 17.3
    IPN 340 68 340 137 12.2 18.3
    IPN 360 76.1 360 143 13 19.5

    Ready to discover more sizes?

    Download the complete I Beam size chart!

    CLICK HERE

    Surface Finish

    Image_4
    i beam111
    222

    Hot Rolled Black:Standard state

    Hot-dip galvanizing: ≥85μm (compliant with ASTM A123), salt spray test ≥500h

    Coating: Liquid paint was evenly sprayed onto the surface of the steel beam using a pneumatic spray gun.

    Customized Content

    Category Options Description MOQ Lead Time Inspection
    Dimension H, B, tₙ, t_f, L Standard or custom sizes 20 tons 7–15 days Dimensions, length tolerance
    Surface Black, blasting, oil, paint/epoxy, galvanizing Corrosion protection 20 tons 10–20 days Surface condition, coating thickness
    Processing Drilling, cutting, beveling, welding, prefabrication Fabrication per drawings 20 tons 15–30 days Drawing & welding check
    Marking & Packing Custom marking, bundling, end protection, waterproof Export-ready 20 tons 3–7 days Packing integrity & marking

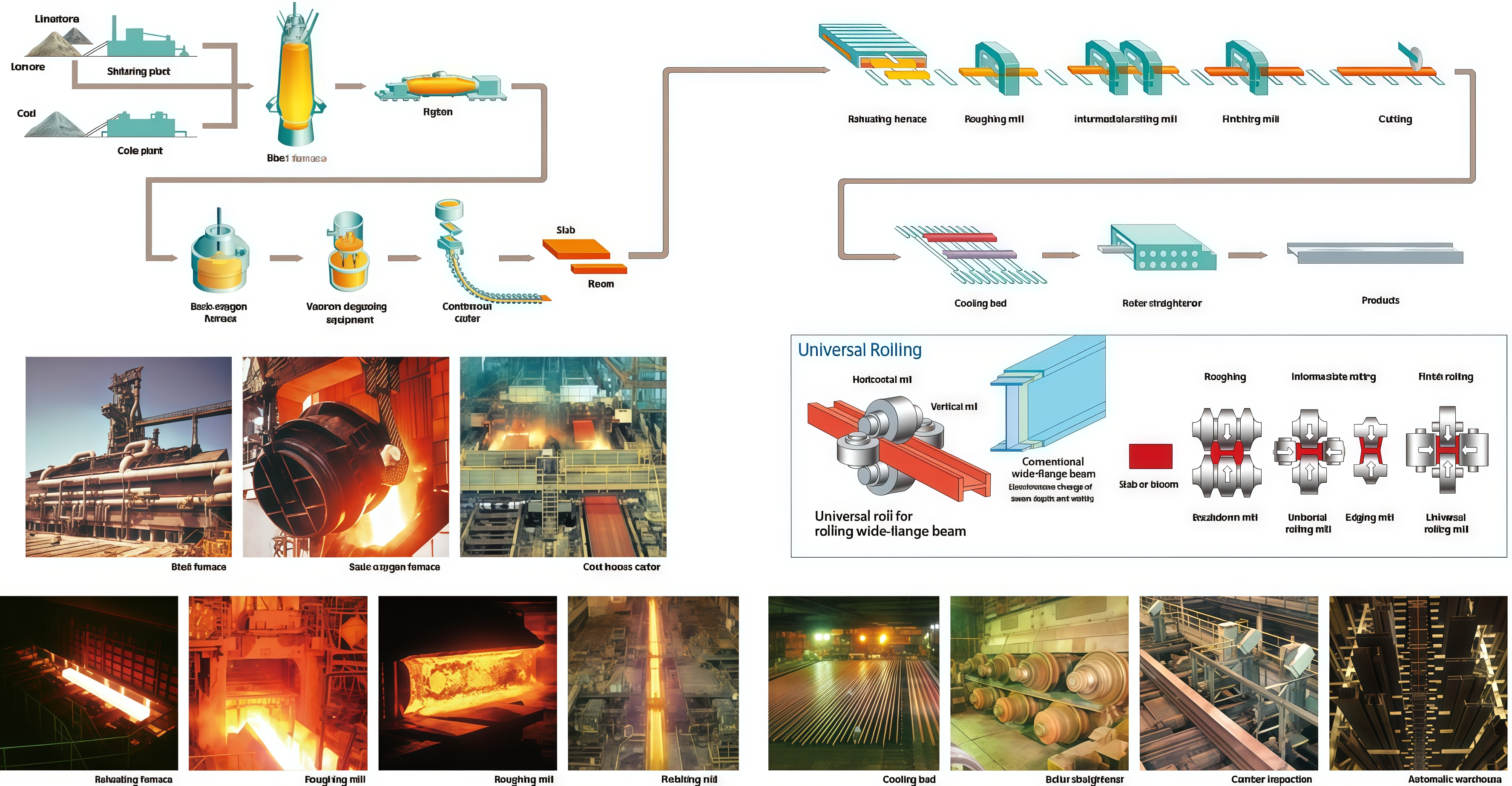

    Production Process

    1.Raw Material Preparation: Select high-quality steel billets according to EN 10025 standards, such as S235, S275, and S355 grades.

    2.Heating: Heat steel billets in a reheating furnace to the required rolling temperature.

    3.Hot Rolling: Roll billets through multiple rolling mills to form the IPE I-beam profile with accurate dimensions.

    4.Cooling & Straightening: Cool the finished beams and use straightening equipment to ensure proper shape and tolerance.

    5.Cutting & Marking: Cut beams into standard lengths and mark product specifications for identification.

    6.Quality Inspection: Conduct chemical analysis, mechanical testing, dimensional checks, and surface inspection.

    7.Packing & Delivery: Bundle beams securely and ship according to export standards for global construction projects.

    process_img_01

    Quality Inspection

    Chemical Composition Test: Verify steel elements to ensure compliance with EN 10025 standards and required grades such as S235, S275, and S355.

    Mechanical Property Test: Check yield strength, tensile strength, elongation, and impact performance to ensure structural reliability.

    Dimension Inspection: Measure beam height, flange width, web thickness, length, weight, and straightness to meet specification requirements.

    Surface Inspection: Check for cracks, rust, scratches, and other surface defects to ensure product quality.

    Ultrasonic Testing (Optional): Detect internal defects and ensure the integrity of the steel beam.

    Final Inspection & Certification: Provide Mill Test Certificate (MTC), inspection reports, and quality documents before shipment.

    H Beam quality Test
    H型钢 验货图3

    Main Application

    Steel Structure Buildings: Widely used in warehouses, factories, commercial buildings, and prefabricated steel structures for reliable load-bearing support.

    Industrial Facilities: Applied in workshops, production plants, equipment platforms, and heavy-duty industrial structures.

    Bridges & Infrastructure: Suitable for bridges, railway structures, highways, and public infrastructure projects requiring high strength and stability.

    Commercial Construction: Used in office buildings, shopping centers, and multi-story steel frame structures.

    Machinery & Equipment Support: Provides strong structural frames and supports for industrial machinery and equipment.

    Energy Projects: Used in power plants, oil & gas facilities, solar mounting structures, and other energy-related construction.

    Steel Fabrication Projects: Commonly processed into frames, supports, columns, and customized structural components.

    OIP (4)_
    astm-a992-a572-h-beam-application-royal-steel-group-3
    astm-a992-a572-h-beam-application-royal-steel-group-4
    OIP (5)_

    Royal Steel Group Advantage（Why Royal Group Stands Out for Americas Clients?）

    ROYAL-GUATEMALA (1)_1
    Image_3 (1)

    1) Branch Office - Support in Spanish, help with customs procedures, etc.

    2) About 5,000 tons of stock in stock, with a wide variety of sizes

    i-beam_

    3)Reviewed by authoritative agencies such as CCIC, SGS, BV, and TUV.

    Packaging and Shipping

    Secure Bundling: IPE beams are bundled with strong steel straps to prevent movement and damage during transportation.

    Standard Export Packing: Each bundle is labeled with size, grade, quantity, and production information for easy identification.

    Surface Protection: Proper handling methods are applied to protect the beam surface during loading and shipping.

    Flexible Shipping Options: Available by container, bulk vessel, or customized logistics solutions according to order requirements.

    Global Delivery Support: Professional logistics team provides efficient transportation and complete export documents for worldwide shipments.

    H型钢发货1
    h-beam-delivery
    H beam2
    H beam3

    FAQ

    Q1. What is an IPE Steel Beam?

    A: IPE Steel Beam is a European standard hot rolled I-shaped structural beam manufactured according to EN 10025 standards, widely used in construction and engineering projects.

    Q2. What grades are available for IPE beams?

    A: We supply common grades including S235JR, S275JR, and S355JR, offering different levels of strength for various applications.

    Q3. What sizes of IPE beams can you provide?

    A: We offer a wide range of sizes, including IPE 80, IPE 100, IPE 200, IPE 300, IPE 400, IPE 500, and IPE 600, with customized sizes available.

    Q4. Can you provide customized processing services?

    A: Yes, we provide cutting, drilling, welding, surface treatment, and customized fabrication services according to project requirements.

    Q5. How do you ensure IPE beam quality?

    A: All products undergo strict inspection, including chemical composition testing, mechanical property testing, dimensional inspection, and surface quality checks. MTC certificates are available.
