Europen Steel Structure Accessories EN 10025-2 S235JR Steel Grating

Short Description:

EN 10025-2 S235JR steel grating is an economical and practical medium-to-low strength hot-rolled carbon steel grating suitable for industrial platforms, walkways, and light to medium load outdoor environments.

Standard: EN

Grade: EN 10025-2 S235JR

Type: Warehouse platform, safety passage, pedestrian grating, light-load outdoor platform

Load Bearing Capacity: Customizable based on bearing bar spacing and thickness; available in Light, Medium, Heavy duty

Opening Size: 25×25 mm,30×30 mm, 38×38 mm,50×50 mm,75×75 mm

Corrosion Resistance: Hot-dip galvanizing, Painted/Powder Coating

Applications: Industrial plants, warehouses, chemical platforms, outdoor walkways, pedestrian bridges, stair treads

Quality Certification: ISO 9001

Payment Terms: T/T 30% Advance + 70% Balance

Delivery Time: 7–15 days

Send email to us WhatsApp

Product Detail

Product Tags

Product Detail

Property	Details
Material	EN 10025-2 S235JR Structural Steel
Type	Flat Bar Grating, Heavy-Duty Grating, Press-Locked Grating
Load Bearing Capacity	Customizable based on bearing bar spacing and thickness; available in Light, Medium, Heavy duty
Mesh / Opening Size	Common sizes: 25 mm × 25 mm, 30 mm × 30 mm; can be customized
Corrosion Resistance	Depends on surface treatment; hot-dip galvanized or painted for enhanced protection
Installation Method	Fixed with support bars or bolted; suitable for flooring, platforms, stair treads, walkways
Applications / Environment	Industrial plants, warehouses, factory platforms, stair treads, pedestrian bridges, outdoor walkways
Weight	Varies depending on grating size, bearing bar thickness, and spacing; calculated per square meter
Customization	Supports custom dimensions, mesh openings, surface finishes, and load-bearing specifications
Quality Certification	ISO 9001 Certified
Payment Terms	T/T: 30% Advance + 70% Balance
Delivery Time	7–15 Days

EN 10025-2 S235JR Steel Grating Size

Grating Type	Bearing Bar Pitch / Spacing	Bar Width	Bar Thickness	Cross Bar Pitch	Mesh / Opening Size	Load Capacity
Light Duty	20 mm – 25 mm	20 mm	4–6 mm	30–50 mm	25 × 25 mm	Up to 350 kg/m²
Medium Duty	25 mm – 38 mm	20 mm	5–8 mm	30–50 mm	30 × 30 mm	Up to 700 kg/m²
Heavy Duty	38 mm – 50 mm	20 mm	6–10 mm	30–50 mm	40 × 40 mm	Up to 1400 kg/m²
Extra Heavy Duty	50 mm – 76 mm	20 mm	8–12 mm	30–50 mm	50 × 50 mm	>1400 kg/m²

EN 10025-2 S235JR Steel Grating Customized Content

Customization	Options	Description / Range
Dimensions	Length, Width, Bearing Bar Spacing	Length: 1–6 m; Width: 500–1500 mm; Bearing bar spacing: 25–100 mm depending on load requirements
Load Capacity	Light, Medium, Heavy, Extra Heavy Duty	Designed to meet project-specific structural and safety requirements
Processing	Cutting, Drilling, Welding, Edge Treatment	Panels can be cut, drilled, welded, or have edges reinforced for installation
Surface	Hot-dip Galvanizing, Powder Coating, Industrial Paint, Anti-slip	Chosen based on indoor/outdoor/coastal environments for corrosion protection and safety
Marking & Packaging	Labels, Project Codes, Export-ready	Custom labels and secure packaging for transport, site identification, and traceability
Special Features	Anti-slip Serration, Custom Mesh	Optional serrated or patterned surfaces for enhanced safety and aesthetics

Surface Finish

D91F426C_45e57ce6-3494-43bf-a15b-c29ed7b2bd8a (1)

907C9F00_6b051a7a-2b7e-4f62-a5b3-6b00d5ecfc4a (1)

Initial Surface

Galvanized Surface

Painted Surface

Application

Walkways

Provides a safe, slip-resistant surface for industrial and commercial areas. The open-grid pattern allows liquids, debris, and dust to pass through easily, keeping the walkway clean and safe.

Steel Staircases

Designed for industrial and commercial staircases. Can include serrated or non-slip surfaces for enhanced safety and stability.

Work Platforms

Supports staff working at height or on elevated surfaces. The open-grid design allows air circulation, visibility, and easy cleaning of the platform.

Drainage Areas

Allows water, oil, and other liquids to pass through efficiently. Widely used on factory floors, outdoor walkways, drainage channels, and maintenance areas.

Our Advantages

1.Durability and Long Service life
High load capacity and long lasting working life can be assured by manufacturer of EN 10025-2 S235JR structural steel.

2.Customizable Options
The size, surface finishing, bearing bar spacing, mesh size and load carrying capacity can be customised according to your project needs.

3.Corrosion and weather resistant
Indoor, outdoor, and marine environment protection can be hot-dip galvanized, powder coated, or industrial painted.

4.Safe & Slip-Resistant
Open grid formations permit liquids and debris to flow through, helping drainage and air-flow, and limiting slip hazards.

5.Wide range of uses
For commercial and industrial applications including walkways, stair treads, work platforms, and drainage.

6.High Quality Assurance
Trusted by many around the world, reliable S235JR steel and ISO 9001 certified.

7.Fast Delivery & Professional Support
Efficient production, safety packaging, delivery in 7-15 days, and professional after-sales service.

Packaging & Shipping

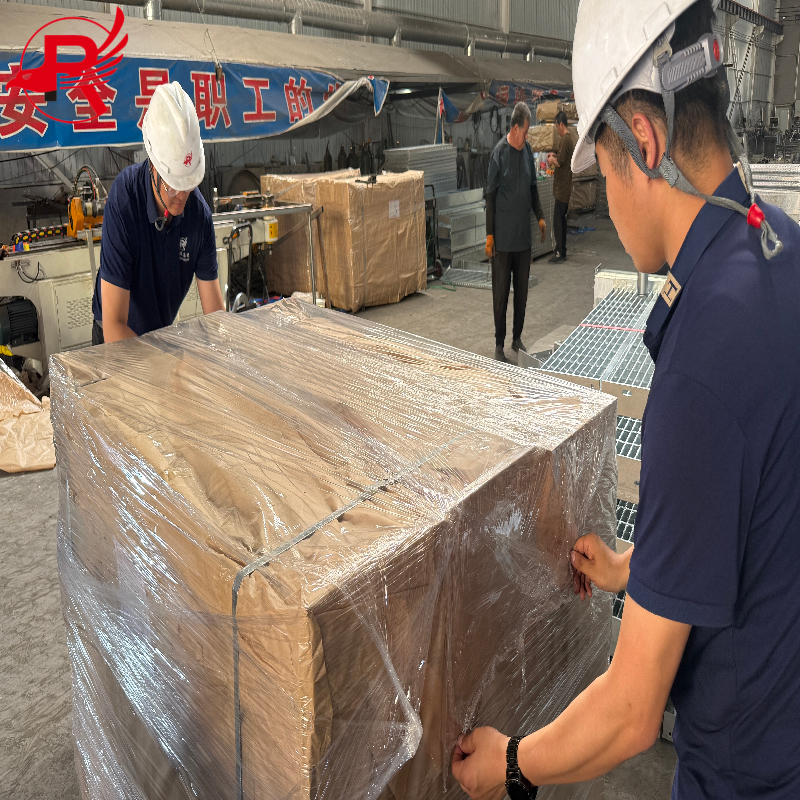

Packing

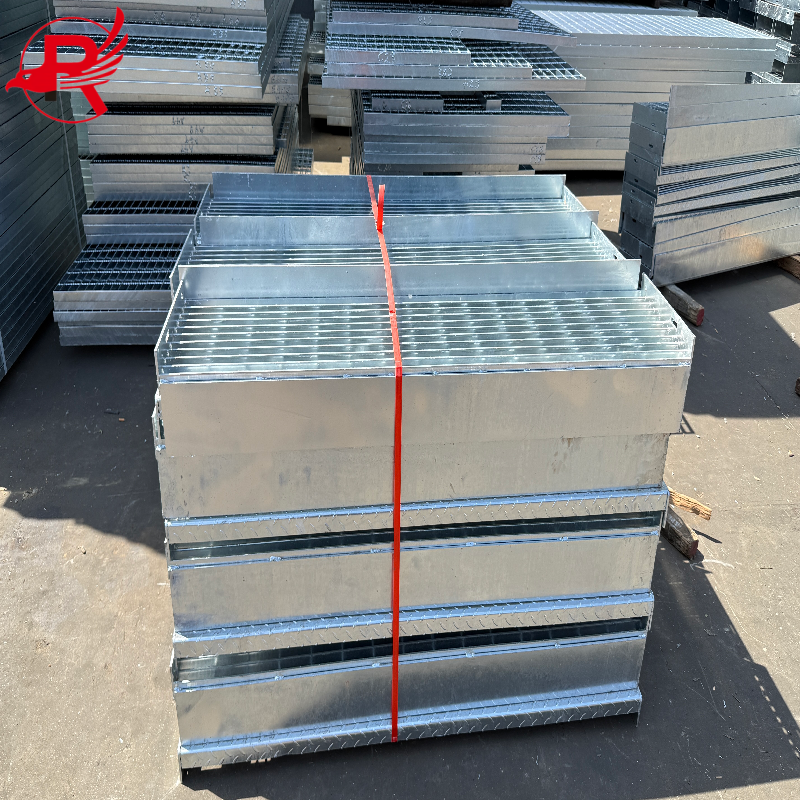

Standard Export Packaging: Panels are securely bundled and braced to prevent damage during transport.
Custom Labels & Project Codes: Bundles can include material grade, size, and project info for easy tracking.
Protection: Optional covers and wooden pallets available for long-distance shipping or delicate surfaces.

Delivery

Production Time: Approximately 15 days per unit; shorter lead times for bulk orders.
Transport Options: Shipped via container, flatbed, or local truck.
Safety: Packaging designed for safe handling, transport, and on-site installation.

FAQ

Q1: What is the material?
A: The product is made of high-strength ASTM A572 steel, ensuring good durability and load bearing capacity.

Q2: Can it be customized?
A: Yes, We can customize the size, mesh, bearing bar spacing, surface finish and load capacity according to your project.

Q3: What surface treatments can i choose?
A: You may elect hot-dip galvanizing, powder coating, or industrial paint for indoor, outdoor, or coastal exposure.

Q4: Typical applications?
A: Perfect for walk ways, stair treads, work platforms, and floor drainages in industrial or commercial locations.

Q5: How to pack and deliver?
A: Panels are tightly bundled, optionally palletized and labeled with material and project information, then shipped by container, rfk, or local transport.
