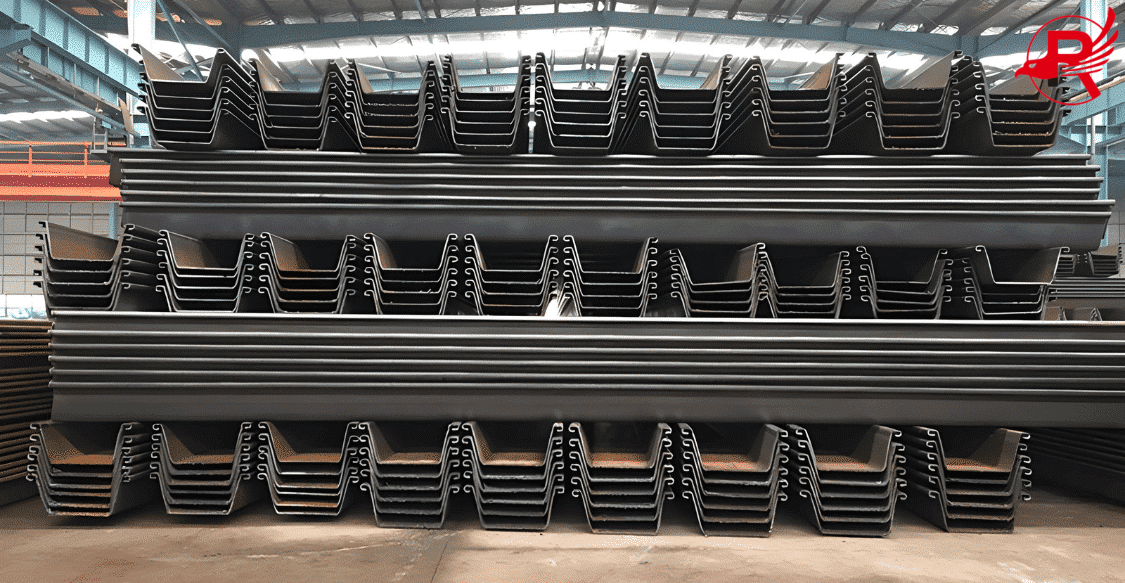

Cold Formed ASTM A328 JIS A5528 SY295/SY390/SY490 6m-18m U-shaped Steel Sheet Pile
| Steel Grade | JIS A5528 SY295/SY390/SY490 ASTM A328 |
| Standard | JIS A5528 ASTM A328 |
| Delivery time | 10~20 Days |
| Certificates | ISO9001,ISO14001,ISO18001,CE FPC |
| Width | 400mm/15.75in、600mm/23.62in、750mm/29.53in |
| Height | 100mm/3.94in–225mm/8.86in |
| Thickness | 9.4mm/0.37in–23.5mm/0.92in |
| Length | 6m-24m,9m,12m,15m,18m and custom |
| Type | U-shape steel sheet pile |
| Processing Service | Punching, Cutting |
| Material composition | C≤0.22%, Mn≤1.60%, P≤0.035%, S≤0.035%, conforming to both JIS A5528 and ASTM A328 standards. |
| Mechanical properties | Yield strength ≥ 390 MPa/56.5 ksi; Tensile strength ≥ 540 MPa/78.3 ksi; Elongation ≥ 18% |
| Technique | Cold Formed |
| Dimensions | PU400x100 PU400x125 PU400x150 PU400x170 PU500x200 PU500x225 PU600x130 PU600x180 PU600x210 |
| Interlock types | Larssen locks,cold rolled interlock,hot rolled interlock |
| Certification | JIS A5528, ASTM A328, CE, SGS certification badges |
| Structural Standards | The Americas market is associated with the AISC Design Standard, while the Southeast Asian market is associated with the JIS Basic Engineering Design Standard. |
| Application | Port & wharf construction, bridges, deep foundation pits, water projects, and emergency rescue |
| JIS A5528 Model | ASTM A328 Corresponding Model | Effective Width (mm) | Effective Width (in) | Effective Height (mm) | Effective Height (in) | Web Thickness (mm) |
| U400×100（ASSZ-2） | ASTM A328 Type 2 | 400 | 15.75 | 100 | 3.94 | 10.5 |
| U400×125（ASSZ-3） | ASTM A328 Type 3 | 400 | 15.75 | 125 | 4.92 | 13 |
| U400×170（ASSZ-4） | ASTM A328 Type 4 | 400 | 15.75 | 170 | 6.69 | 15.5 |
| U600×210（ASSZ-4W） | ASTM A328 Type 6 | 600 | 23.62 | 210 | 8.27 | 18 |
| U600×205（Customized） | ASTM A328 Type 6A | 600 | 23.62 | 205 | 8.07 | 10.9 |
| U750×225（ASSZ-6L） | ASTM A328 Type 8 | 750 | 29.53 | 225 | 8.86 | 14.6 |
| Web Thickness (in) | Unit Weight (kg/m) | Unit Weight (lb/ft) | Material (Dual Standard Compatible) | Yield Strength (MPa) | Tensile Strength (MPa) | Applicable Scenarios for the Americas Market | Applicable Scenarios for the Southeast Asian Market |
| 0.41 | 48 | 32.1 | SY390 / Grade 50 | 390 | 540 | Small-Diameter Distribution Pipes for Urban Utilities and City-Scale Irrigation in North America | Irrigation systems: Farmland in Indonesia and the Philippines |
| 0.51 | 60 | 40.2 | SY390 / Grade 50 | 390 | 540 | Foundation Support for Midwestern Homes in the U.S. | Bangkok Urban Drainage Project |
| 0.61 | 76.1 | 51 | SY390 / Grade 55 | 390 | 540 | Gulf Coast flood control levees | Singapore Land Reclamation Project (Small Section) |
| 0.71 | 106.2 | 71.1 | SY390 / Grade 60 | 390 | 540 | Seepage Protection for Houston Port and Texas Oil Shale Dikes | Jakarta Deep-Sea Port Support |
| 0.43 | 76.4 | 51.2 | SY390 / Grade 55 | 390 | 540 | River management in California | Coastal Protection for Ho Chi Minh City Industrial Zone |
| 0.57 | 116.4 | 77.9 | SY390 / Grade 60 | 390 | 540 | Deep Foundation Pits at Vancouver Port, Canada | Malaysia Large-Scale Land Reclamation Project |
Americas: Hot-dip galvanized (ASTM A123, zinc layer: ≥ 85 μm) + 3PE coating (optional), marked with "Environmentally friendly RoHS compliant".
Southeast Asia: Hot-dip galvanized (thickness of zinc layer ≥100μm) + epoxy coal tar coating, highlighting "no rust after 5000 hrs of salt spray test, applicable for tropical marine climate".
-
Design: Yin-yang interlocking, permeability ≤1×10⁻⁷ cm/s
-
Americas: ASTM D5887 compliant
-
Southeast Asia: Resistant to tropical-season groundwater seepage
Steel Selection:
Choose high-quality structural steel (e.g., Q355B, S355GP, GR50) based on mechanical properties
Heating:
Heat billets/slabs to ~1,200°C for malleability.
Hot Rolling:
Shape steel into U-profile with rolling mills.
Cooling:
Cool individually or with tap water sprays until reaching the desired consistency.
Straightening & Cutting:
Verify length and width, then cut to standard or customer-specified size.
Quality Inspection:
Perform dimensional, mechanical and visual examinations.
Surface Treatment (Optional):
Apply paint, zinc plating, or rust protection, as required.
Packaging & Shipping:
Bundle, protect, and load for transport.
- Ports & Quays: The interlock systems of steel sheet piles provide a strong and stable structure, which can also be used as retaining walls for shorelines, ports and quays.
Bridge Engineering: Serving as deep foundations, they increase bearing capacity and scour protection for bridges.
Underground Parking: Dependable lateral support to keep dirt from caving in while you dig.
Water Projects: Perfect for use on riverbanks, dams and cofferdams to facilitate a safe and productive management of water.
Port and Wharf construction
Bridge Engineering
Deep foundation pit support for underground parking lots
Water conservancy projects
- Local Support: Our team speaks Spanish and is ready to assist you.
Stock Available: Stock is ready for delivery.
Secure Packaging: Packaged in bundles and protected from corrosion.
Trustworthy Transport: Delivery to site is safe and efficient. Reliable Transport
Steel Sheet Pile Packaging & Delivery
Packaging: Bundled using steel straps or wire ropes.
Protection From End: Wooden blocks or caps on the ends of the pile.
Protection From Rust: With rust oil or sealed film.
Loading & Shipping: By crane/forklift we load and tie down on trucks or in containers.
Delivery: Neatly disassembled, delivered and stacked on your site for quick, easy access.
1. Can you supply steel sheet piles to the Americas?
Answer: Yes, our branches across North, Central, and South America provide high-quality steel sheet piles with professional Spanish-speaking support for smooth transactions.
2. How are the steel sheet piles packed?
Answer: Bundled with waterproof end caps and anti-rust treatment, wrapped in plastic woven bags, and shipped via truck, flatbed, or container to your site.
