Download the complete EN H beam dimension table
EN 10025 S235JR H Beam | HEA HEB European Standard China Supplier | Structural Steel Beam
| Item | Description |
|---|---|
| Product Name | EN 10025 S235JR H Beam (HEA / HEB) |
| Standard | EN 10025 / European Standard |
| Steel Grade | S235JR |
| Shape | H Beam / HEA / HEB |
| Production Process | Hot Rolled |
| Depth (H) | 100 – 900 mm |
| Flange Width (B) | 100 – 300 mm |
| Length | 6 m / 9 m / 12 m or customized |
| Surface | Black / Galvanized |
| Application | Buildings, Industrial Plants, Bridges, Platforms |
| Certification | ISO / SGS / Mill Test Certificate (MTC) |
| Property | Value |
|---|---|
| Yield Strength | 235 MPa |
| Tensile Strength | 360 – 510 MPa |
| Elongation | ≥20% |
Provides stable load-bearing capacity and structural reliability for European standard projects.
HEA SIZE
HEB SIZE
HEM SIZE
HEA SIZE
| Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| HEA100 | 17.1 | 96 | 100 | 5 | 8 |
| HEA120 | 20.3 | 114 | 120 | 5 | 8 |
| HEA140 | 25.2 | 133 | 140 | 5.5 | 8.5 |
| HEA160 | 31 | 152 | 160 | 6 | 9 |
| HEA180 | 36.2 | 171 | 180 | 6 | 9.5 |
| HEA200 | 43.2 | 190 | 200 | 6.5 | 10 |
| HEA220 | 51.5 | 210 | 220 | 7 | 11 |
| HEA240 | 61.5 | 230 | 240 | 7.5 | 12 |
| HEA260 | 69.5 | 250 | 260 | 7.5 | 12.5 |
| HEA280 | 77.9 | 270 | 280 | 8 | 13 |
| HEA300 | 90 | 290 | 300 | 8.5 | 14 |
| HEA320 | 99.5 | 310 | 320 | 9 | 15.5 |
| HEA340 | 107.1 | 330 | 340 | 9.5 | 16.5 |
| HEA360 | 114.2 | 350 | 360 | 10 | 17.5 |
| HEA400 | 127.4 | 390 | 400 | 11 | 19 |
| HEA450 | 142.7 | 440 | 450 | 11.5 | 21 |
| HEA500 | 158 | 490 | 500 | 12 | 23 |
| HEA550 | 169.2 | 540 | 550 | 12.5 | 24 |
| HEA600 | 181.4 | 590 | 600 | 13 | 25 |
HEB SIZE
| Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| HEB100 | 20.8 | 100 | 100 | 6 | 10 |
| HEB120 | 27.3 | 120 | 120 | 6.5 | 11 |
| HEB140 | 34.4 | 140 | 140 | 7 | 12 |
| HEB160 | 43.5 | 160 | 160 | 8 | 13 |
| HEB180 | 52.2 | 180 | 180 | 8.5 | 14 |
| HEB200 | 62.5 | 200 | 200 | 9 | 15 |
| HEB220 | 72.9 | 220 | 220 | 9.5 | 16 |
| HEB240 | 84.8 | 240 | 240 | 10 | 17 |
| HEB260 | 94.8 | 260 | 260 | 10 | 17.5 |
| HEB280 | 105 | 280 | 280 | 10.5 | 18 |
| HEB300 | 119.3 | 300 | 300 | 11 | 19 |
| HEB320 | 129.5 | 320 | 300 | 11.5 | 20.5 |
| HEB340 | 136.6 | 340 | 300 | 12 | 21.5 |
| HEB360 | 144.8 | 360 | 300 | 12.5 | 22.5 |
| HEB400 | 158 | 400 | 300 | 13.5 | 24 |
| HEB450 | 174.3 | 450 | 300 | 14 | 26 |
| HEB500 | 190 | 500 | 300 | 14.5 | 28 |
| HEB550 | 202.8 | 550 | 300 | 15 | 29 |
| HEB600 | 216.1 | 600 | 300 | 15.5 | 29 |
HEM SIZE
| Item | Weight (kg/m) | Height (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| HEM 100 | 42.6 | 120 | 106 | 12 | 20 |
| HEM 120 | 53.1 | 140 | 126 | 12.5 | 21 |
| HEM 140 | 64.5 | 160 | 146 | 13 | 22 |
| HEM 160 | 77.8 | 180 | 166 | 14 | 23 |
| HEM 180 | 90.6 | 200 | 186 | 14.5 | 24 |
| HEM 200 | 105 | 220 | 206 | 15 | 25 |
| HEM 220 | 119.3 | 240 | 226 | 15.5 | 26 |
| HEM 240 | 160 | 270 | 248 | 18 | 32 |
| HEM 260 | 175.3 | 290 | 268 | 18 | 32.5 |
| HEM 280 | 192.7 | 310 | 288 | 18.5 | 33 |
| HEM 300 | 242.6 | 340 | 310 | 21 | 39 |
| HEM 320 | 249.7 | 359 | 309 | 21 | 40 |
| HEM 340 | 252.8 | 377 | 309 | 21 | 40 |
| HEM 360 | 254.8 | 395 | 308 | 21 | 40 |
| HEM 400 | 260.9 | 432 | 307 | 21 | 40 |
| HEM 450 | 268.1 | 478 | 307 | 21 | 40 |
| HEM 500 | 275.1 | 524 | 306 | 21 | 40 |
| HEM 550 | 283.4 | 572 | 306 | 21 | 40 |
| HEM 600 | 290.5 | 620 | 305 | 21 | 40 |
Learn more about sizes
Ordinary Surface
Galvanized Surface (thickness of the hot-dip galvanizing ≥ 85μm, life span of 15-20 years),
Black Oil Surface
1.Structural Buildings: They serve as the backbone of your building - the structure pillars and beams of your offices, homes or warehouses and provide stable load support for your floors, walls, and ceilings.
2.Industrial Plants & Factories: It also bears medium-load equipment, such as machinery, assembly lines, and storage racks, to maintain long-lasting firmness and stability in spite of operating load.
3.Bridges & Infrastructure: It can be used in pedestrian walkways and short-span bridges and its high strength allows it to be bent or deformed.
4.Platforms and Equipment Support: Use for a safe and solid foundation for your industrial platforms, mezzanines and machinery.
1) Branch offices in the United States and Guatemala
2) European standard H beam with ample inventory
3) Inspected by authoritative organizations such as CCIC, SGS, BV, and TUV, with standard seaworthy packaging
-

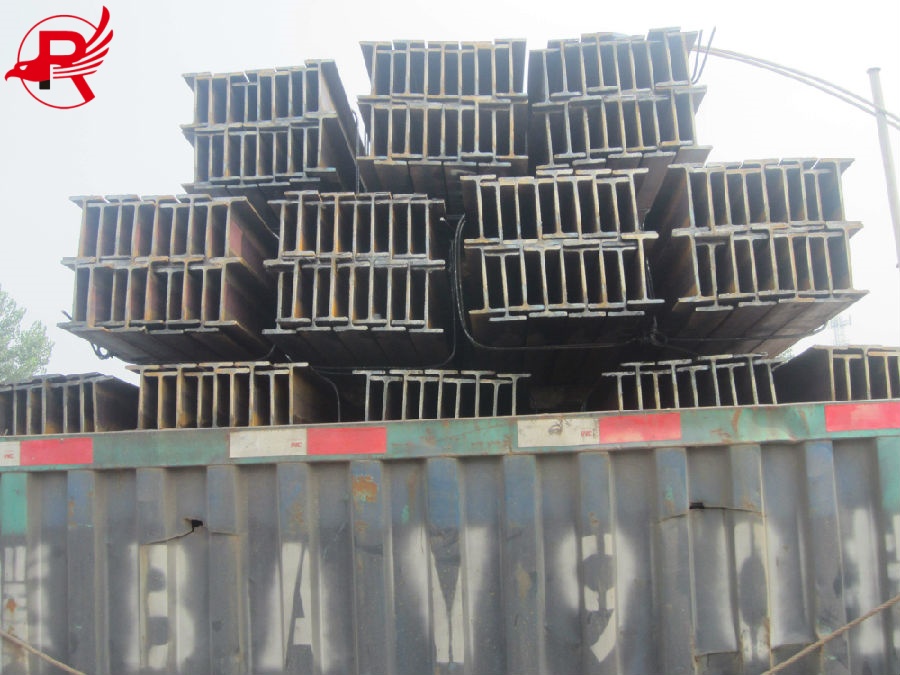

Bundled with steel straps to prevent movement or damage during transit.
-
Wrapped in waterproof membrane to protect against moisture; optional anti-rust coating or galvanization for humid/coastal environments.
-
Flexible shipment options: wooden pallets for small orders, bulk/container shipping for large orders.
-
Mill Test Certificate (MTC) included to verify compliance with EN 10025 S235JR standards.
-
Corner protectors applied to prevent flange deformation during handling and loading.
1. What is EN 10025 S235JR H Beam?
A European standard wide flange structural steel beam (HEA/HEB) for construction, bridges, and industrial projects.
2. Can H beams be customized?
Yes, we provide custom sizes, cutting, drilling, welding, and galvanizing.
3. What surface treatments are available?
Black steel, anti-rust coating, shot blasting, and hot-dip galvanizing.
4. Do you provide Mill Test Certificates (MTC)?
Yes, all shipments include MTC and inspection reports for EN 10025 S235JR compliance.
5. What is the delivery time?
Typically 10–25 days, depending on quantity and customization.
6. Which countries do you export to?
We export to Europe, Latin America, Southeast Asia, Middle East, and North America.
