High Strength ASTM A572 Gr 50 Hot-Dip Galvanized C Channel/Purlin for Solar Mounting Structure
Product Detail
| Item | Specification |
|---|---|
| Standard | ASTM A572 Grade 50 |
| Material Type | High-strength low alloy steel |
| Surface Treatment | Hot-dip galvanized |
| Zinc Coating | Typically 40–120 μm |
| Thickness | 2.0 mm – 6.0 mm (customizable) |
| Length | 6m / 9m / 12m / customized |
| Processing | Cold forming, punching, cutting |
A572 Gr 50 Hot-Dip Galvanized Steel C Channel Chemical Composition & Mechanical Properties
Chemical Composition (ASTM A572 Gr 50)
| Element | C (%) | Mn (%) | Si (%) | P (%) | S (%) | Microalloying Elements |
|---|---|---|---|---|---|---|
| ASTM A572 Gr 50 | ≤ 0.23 | ≤ 1.35 | 0.15 – 0.40 | ≤ 0.040 | ≤ 0.050 | Trace (V, Nb) |
Mechanical Properties
| Yield Strength | Tensile Strength | Elongation |
|---|---|---|
| ≥ 345 MPa | 450 – 620 MPa | ≥ 18% |
A572 Gr 50 Hot-Dip Galvanized Steel C Channel Size
| Size (H × B × t) | Height (H) | Flange (B) | Thickness (t) | Weight (kg/m) |
|---|---|---|---|---|
| C80 × 40 × 2.0 | 80 | 40 | 2.0 | 3.77 |
| C100 × 50 × 2.0 | 100 | 50 | 2.0 | 4.71 |
| C120 × 50 × 2.5 | 120 | 50 | 2.5 | 6.92 |
| C140 × 60 × 2.5 | 140 | 60 | 2.5 | 8.31 |
| C160 × 60 × 2.5 | 160 | 60 | 2.5 | 9.54 |
| C180 × 70 × 3.0 | 180 | 70 | 3.0 | 13.50 |
| C200 × 70 × 3.0 | 200 | 70 | 3.0 | 15.10 |
| C220 × 75 × 3.0 | 220 | 75 | 3.0 | 16.90 |
| C250 × 80 × 3.0 | 250 | 80 | 3.0 | 18.70 |
| C300 × 90 × 3.5 | 300 | 90 | 3.5 | 26.20 |
Ready to find more?
Surface Finish
Common Surfaces
Hot-dip galvanizated surface
Spray Paint

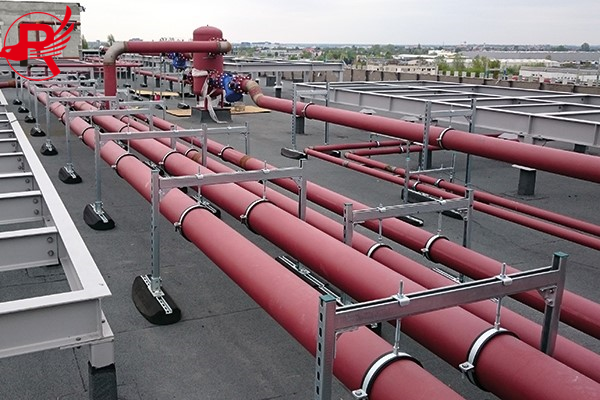

Application
Structures for Solar Mounting
They are rails in PV systems on which the solar panels rest. Strong, Durable and Corrosion Protected.

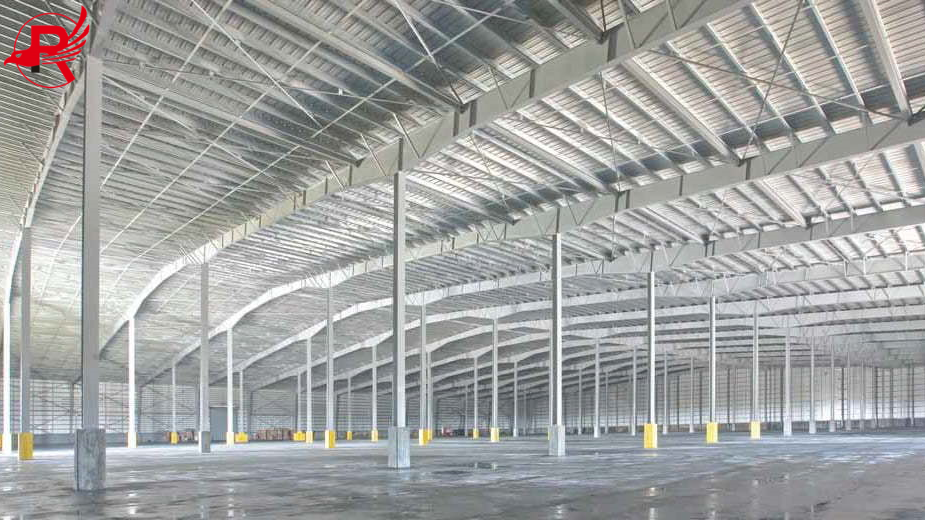

Industrial & Warehouse Buildings
Serving as purlins and wall girt, roof and walls system are covered in steel buildings.
Roofing & Wall Support
It can be applied in any project as a beam to support a roof sheet and a wall cladding.
Agricultural Building Solutions
There is a many use in greenhouses, barns and other farm buildings and in many case the shed show good outdoor durability.
Why Choose China Royal Steel
Factory Competitive Price
Enjoy stable and clear prices for bulk purchase and project tendering and for long term cooperation.
Strong Production Capacity
Professional work team and advanced equipment can guarantee the quality and delivery time of the bulk order.
Custom Engineering & Fabrication
We offer a range of customizations to the size, thickness, punching, slotting, cutting, and several other specifications of each piece.
Worldwide Export Experience
Our C Channel are already widely exported and used in Solar mounting System, Steel Structure Project in overseas market.
Strict Quality Control
All the products are tested with dimensional precision, mechanical properties and Galvanized Coating quality to realize the standard.
Professional packaging & logistics
Export standard packaging is available, is suitable for shipping by container & by sea.
Packaging & Shipping
Each C channel is individually wrapped with waterproof packaging and has strapping that is reinforced for the shipment.
Applicable for worldwide export such as container or pallet load.
Terms of dispatch: FOB, CIF, EXW.
FAQ
Q1: Can you make sizes and specifications according to our demands?
A: Yes, we can customize sizes,thickness,hole punching, slotting,length, surface treatment based on your project requirements.
Q2: What is the applicable working environment for the product?
A: It has a broad application in solar mounting system, industrial building, roof and wall support, infrastructure, etc.
Q3: How long is the delivery time?
A: Deliverying time is about 15-30days according to quantity and customization.
Q4: Can you supply MTC?
A: Yes, we can supply MTC and inspection report for the material quality and comforming with ASTM standard.
Q5: What is the minimum order quantity?
A: The standard MOQ is 20 tons; but trial orders are negotiable.
